Description

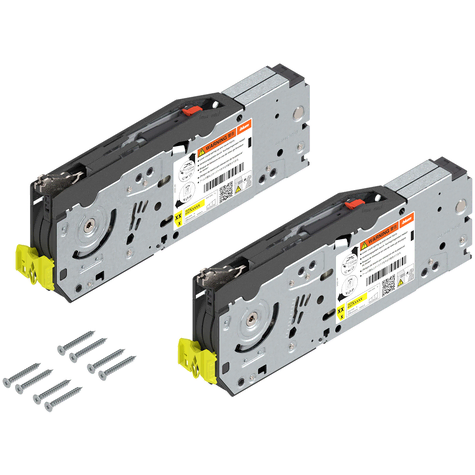

AVENTOS HF, 20F2800.05 - Lift Mechanism,9000-17250
AVENTOS HF Lift Mechanism suitable to have SERVO-DRIVE mounted
Requires, Telescopic arms, cover caps, Hinge set to complete solution. SERVO-DRIVE optional extra
Ideal for wall cabinets with divided fronts
Cabinet height range 480 up to 1040mm
Cabinet width up to 1800mm
Silent and effortless closing, thanks to BLUMOTION
Light operating forces
Variable stop
Tool-free assembly
3-dimensional front adjustment of both fronts
Recommended Uses
- Used with AVENTOS HF
Attributes
Product Attributes
|
UOM Information
|
1 = 1 Each |
|
Kit
|
No |
|
Brand Name
|
Blum |
|
Colour
|
Silver |
|
Material
|
STEEL |
|
Supplier Code
|
09007822 |
|
Supplier Item Code
|
09007822 |
|
Rooms and Spaces
|
Bathroom, Bedroom, Kitchen, Living Room, Office, Multi Residential, Healthcare & Aged Care, Study |
Specifications
Capacity
|
Power Factor
|
9000-17250 |
Catalog
|
Catalogue Code
|
1-321-280 |
|
Product Class
|
Lift Mechanisms |
|
Product Type
|
HF Lift System |
Warranty
|
Length
|
5 Years |
Guides & Documents
