YALE AERON ACTUATOR ZIGBEE MODULE WHITE

Product Code: 7115888

* Lead time subject to availability


Includes GST
$132.30
Trade customers sign in to view account pricing

Quantity

Quantity has been updated based on minimum order quantity
Quantity has been updated based on minimum order quantity of 1

Pack size = 1 Each


Description

Yale Aeron® Smart Window Control System - an innovative solution designed to effortlessly manage multiple windows with just a touch. Ideal for hard to reach or heavy awning and casement windows, the Aeron® system simplifies the process of opening and closing windows, either individually or in groups. The built-in chain release feature ensures easy installation without the need for power connection. The comprehensive Yale Aeron® system features the Aeron® Smart Actuator, which can be controlled via a hardwired Wall Switch or seamlessly integrated with the Yale Connect Plus Hub 2, Yale Home App, and Aeron® Remote using ZigBee Wireless Mesh Technology, allowing your customers to manage their windows from anywhere in the world.

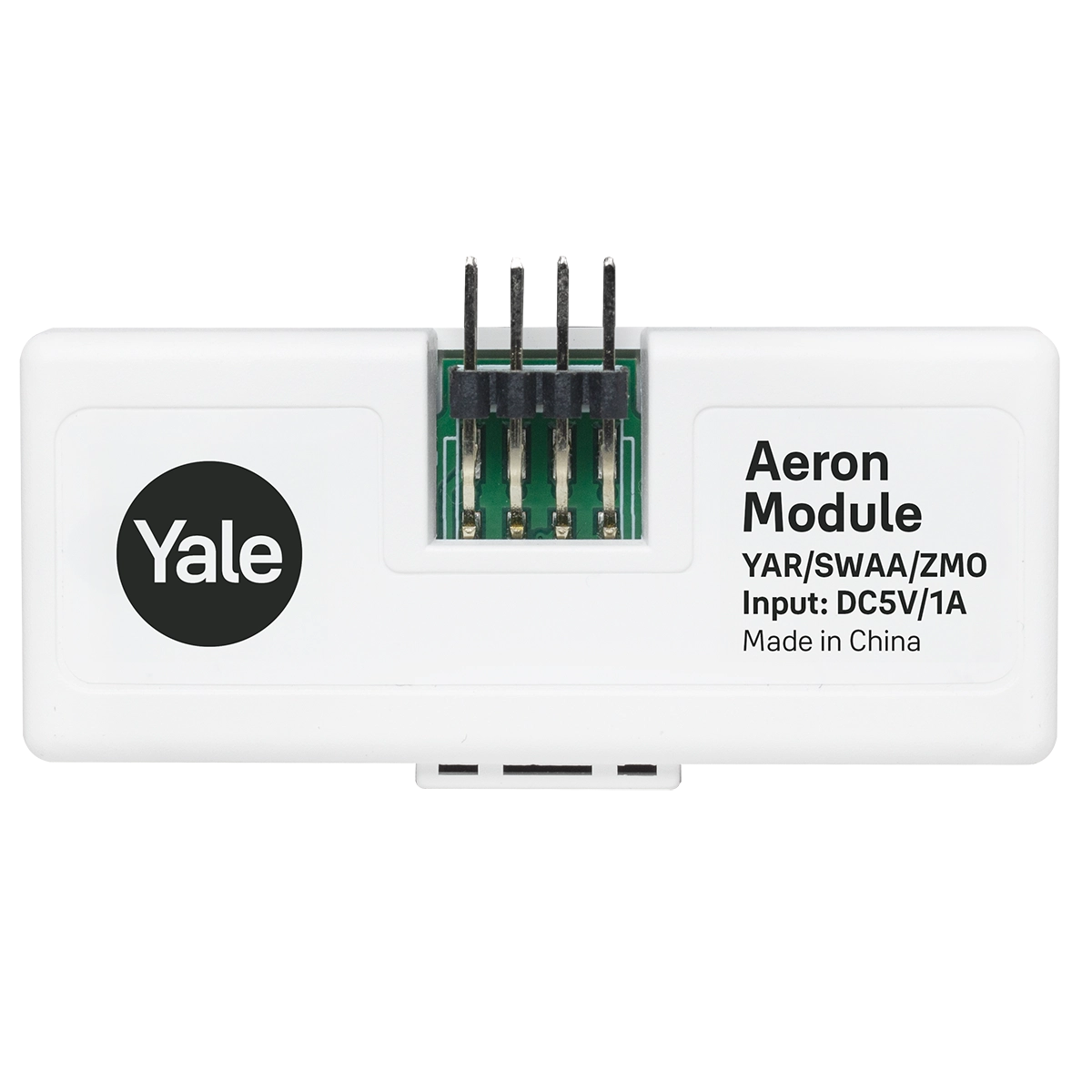

The Aeron® Wireless Zigbee Module allows the Aeron® Window
Actuator wireless connectivity and smart functions. It relays
commands from the Yale Connect Plus Hub 2 to the Actuator, as well
as transmitting out to the Hub and other Actuators within the Zigbee
mesh network.The Aeron® Module is the special component that makes the Aeron®
Window Actuator wireless, allowing users to upgrade from hard-wired
wall switches to the world of possibilities opened up by wireless setup.
All it takes is to connect through Yale Connect Plus Hub 2.
Each Aeron® Actuator comes wireless-ready with Aeron® Module
pre-installed, which can be replaced or removed if not required. I.e, in
Synchronisation connection Slave actuator must NOT have a Module
installed in it

  • Benefits
  • Operate window actuators wirelessly with Remote or the Yale Home APP
  • Zigbee mesh certifiedEasy to install/remove from the actuatorWireless Aeron® Module allows Aeron® actuator to register on the APP hassle-freeQR code scannableSpecification
  • Communication - ZigBee
  • Power - 5 VDC/1.0A (Powered by Aeron Host Actuator)Operating Temperature - 0-40°COperating Humidity - 10-90% Non-condensing

Attributes

Product Attributes

UOM Information

1 = 1 Each

Kit
No
Supplier Code
YAR/SWAA/ZRT
Supplier Item Code
7115888
Rooms and Spaces
Residential buildings, Commercial buildings, Awning and casement windows, High, out of reach windows

Specifications

Product Dimensions

Width in Metric
58 MM
Depth
7.3 MM
Height
25 MM

Power

Voltage
5 VCD
Amperes
1.0 A
Guides & Documents
LS_document_tale_aeron_retrofit_conel_instructions)q_1123
Download (380 KB)
LS_document_Q50294_ya_aeron_actuator_instruction
Download (970 KB)
LS_document_Yale_aeron_sync_instrucation_Q50295_1123
Download (238 KB)
LS_document_2023_aeron_fitting_instruction
Download (279 KB)
Ls_document_yale_aeron_retrofit_elevation_instructions_1123
Download (1 MB)
Yale Aeron Window Control System Overview
Download (452 KB)
