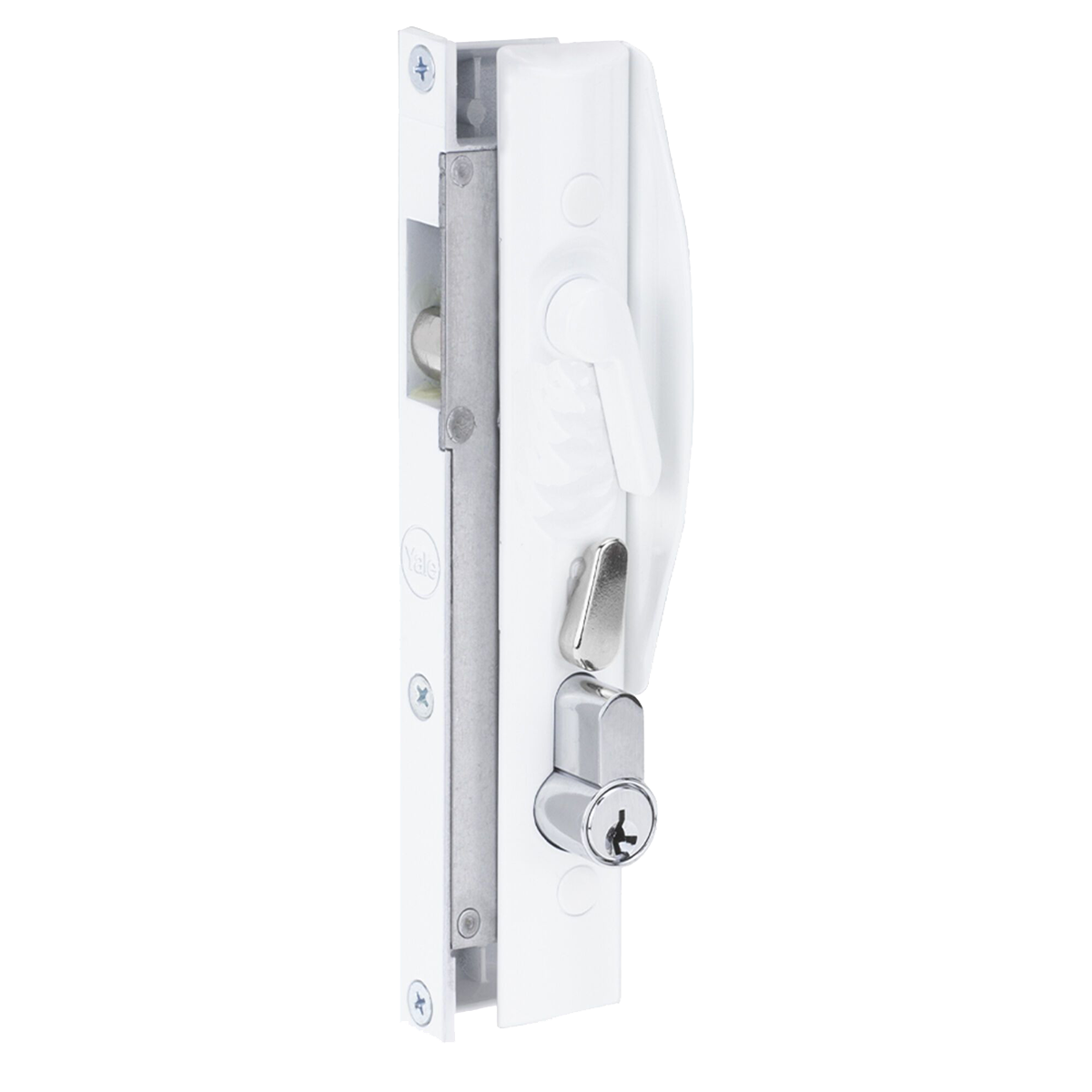

Yale Quattro Sliding Security Door Lock White
Product Code: 7111308
QUATTRO SLIDING SECURITY DOOR LOCK NO CYLINDER White
Quantity
Quantity has been updated based on minimum order quantity
Quantity has been updated based on minimum order quantity of 1
Pack size = 1 Each
Security & Screening Deals
/
Buy 10 or more & pay $35.99 ex GST per unit!
Description
The new Yale Quattro Sliding Security Door Lock incorporates Yale’s advanced safety and security feature DualSelect ® and is ideal for use in residential applications. It shares similar design cues with that of its hinged counterpart, to compliment the total Yale offer.
Features & Specifications
-
Double Cylinder / Cylinder & Turn
-
Reversible Handing
- Concealed fixing screws from the outside of the door for a cleaner appearance and increased security.
- Compatible with industry standard door preparation
- Retrofitable with Lockwood 8653.
- Suit standard door thicknesses, ranging 18.0 – 25.0mm
- Internal padlock symbol denotes door is snib locked
- Contemporary styled furniture with pre-assembled snib
- 3 Point Locking Kit operation is driven by the inside snib for increased security when 'day latched'
- Key overrides snib
- Tested to Australian Standard
- Approved Standards Rating Level - Security S7, Durability D8
- Yale 10YR Mechanical Warranty
Attributes
Product Attributes
|
UOM Information
|
1 = 1 Each |
|
Kit
|
No |
|
Brand Name
|
Yale |
|
Colour
|
White |
|
Material
|
ZINC |
|
Supplier Code
|
Y8103WH |
|
Supplier Item Code
|
7111308 |
|
Rooms and Spaces
|
Sliding Security Door |
Specifications

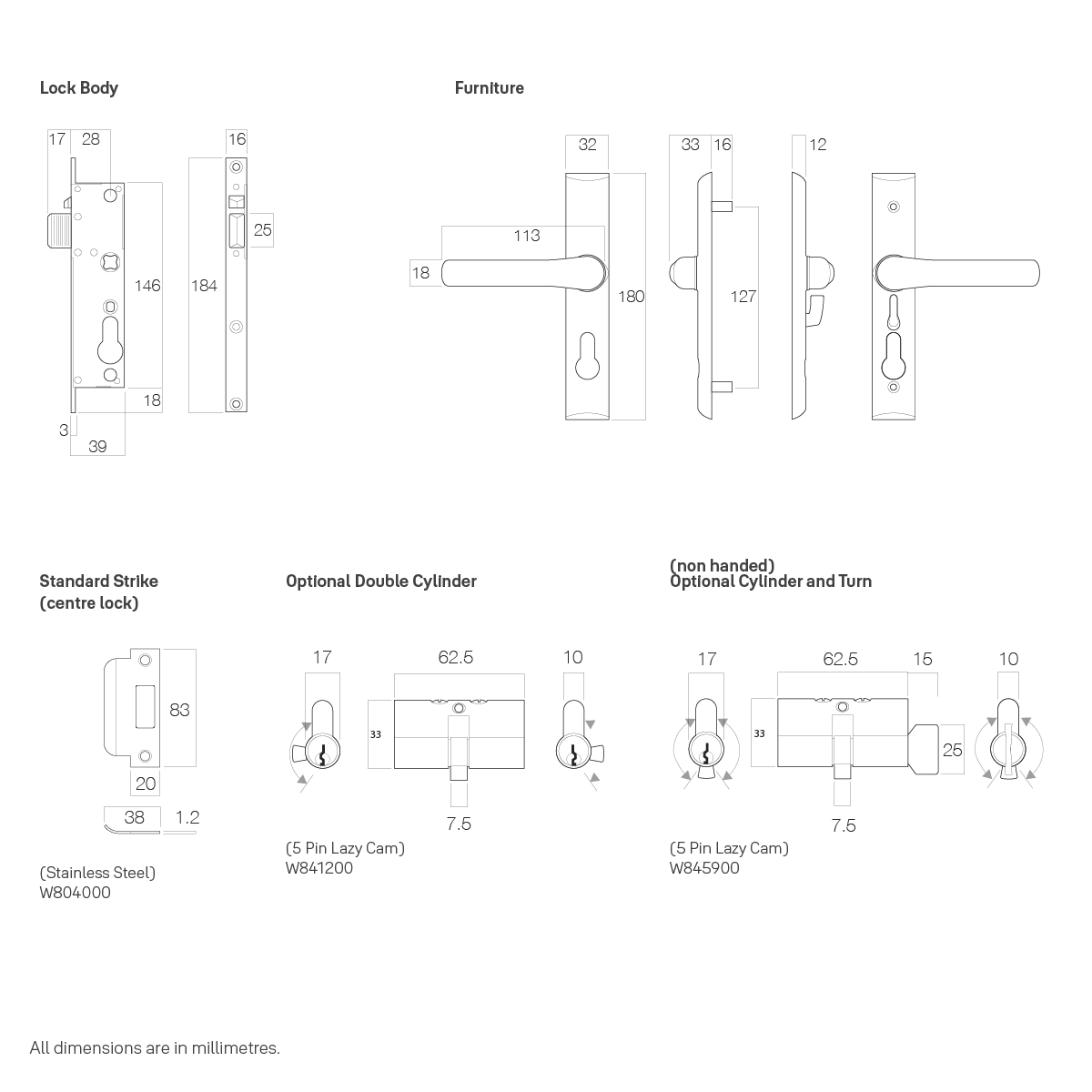

Installation Dimensions
|
Min Depth
|
20mm |
|
Minimum Recess
|
20mm |
Product Dimensions
|
Width in Metric
|
28mm |
|
Depth
|
39mm |
|
Height
|
184mm |
|
Thickness
|
16mm |
Warranty
|
Length
|
10 Year |
|
Type
|
Mechanical |
Guides & Documents
7111308_QUATTRO LOCK SLIDING SECURITY DOOR WHITE NO CYLINDER
Download (464 KB)
