BRIO MULTIFOLD 30 2 DOOR PACK NO CHANNEL
Quantity
Pack size = 1 Each
Description

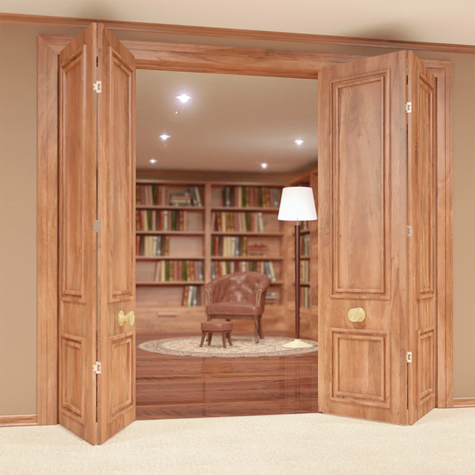

Multifold 30 from Brio is a versatile, interior folding door hardware system. The axis on the pivot and hangers sits within 25mm of the edge of the door, minimising the overhang of the panels, improving appearance and making it possible to fit trim to hide the gap between track and panel. The hanger includes four precision bearings and a quick release plate. This with the single spanner height adjustment makes installation easy. Max Panel Weight: 30kg Max Panel Height: 2400mm Height Adjustment: 3mm Max Panel Width: 650mm Min Panel Thickness: 19mm Horizontal Adjustment: 4.0mm
Features
- 2 panel pack of fittings, without track
Attributes
Product Attributes
| UOM Information |
1 = 1 Each |
| Kit | No |
| Brand Name | Brio |
| Supplier Code | MF30-2PK |
Specifications
Installation Dimensions
| Max Width | 650mm |
| Max Height | 2400mm |
Catalog
| Product Class | Tracks |
| Product Type | Internal Bi-fold |
Warranty
| Length | 10 Years |
| Type | Manufacturer |
