HERA SWITCH SENSOR LED MOTION ACTIVATED IR S/D K80

The switch is triggered by a person approaching and/or door motion
Function 1 (as supplied): The first time the switch detects motion it turns the light on, and the second time it turns it off again
Function 2 (press button for 3-secs., see instructions): Opening the door automatically switches the light on and closing the door switches it off again (combination of several IR switches possible)
To operate LED luminaires 24V (max. capacity 30W - can be used with 75W transformer, but the maximum switching capacity is 30W)

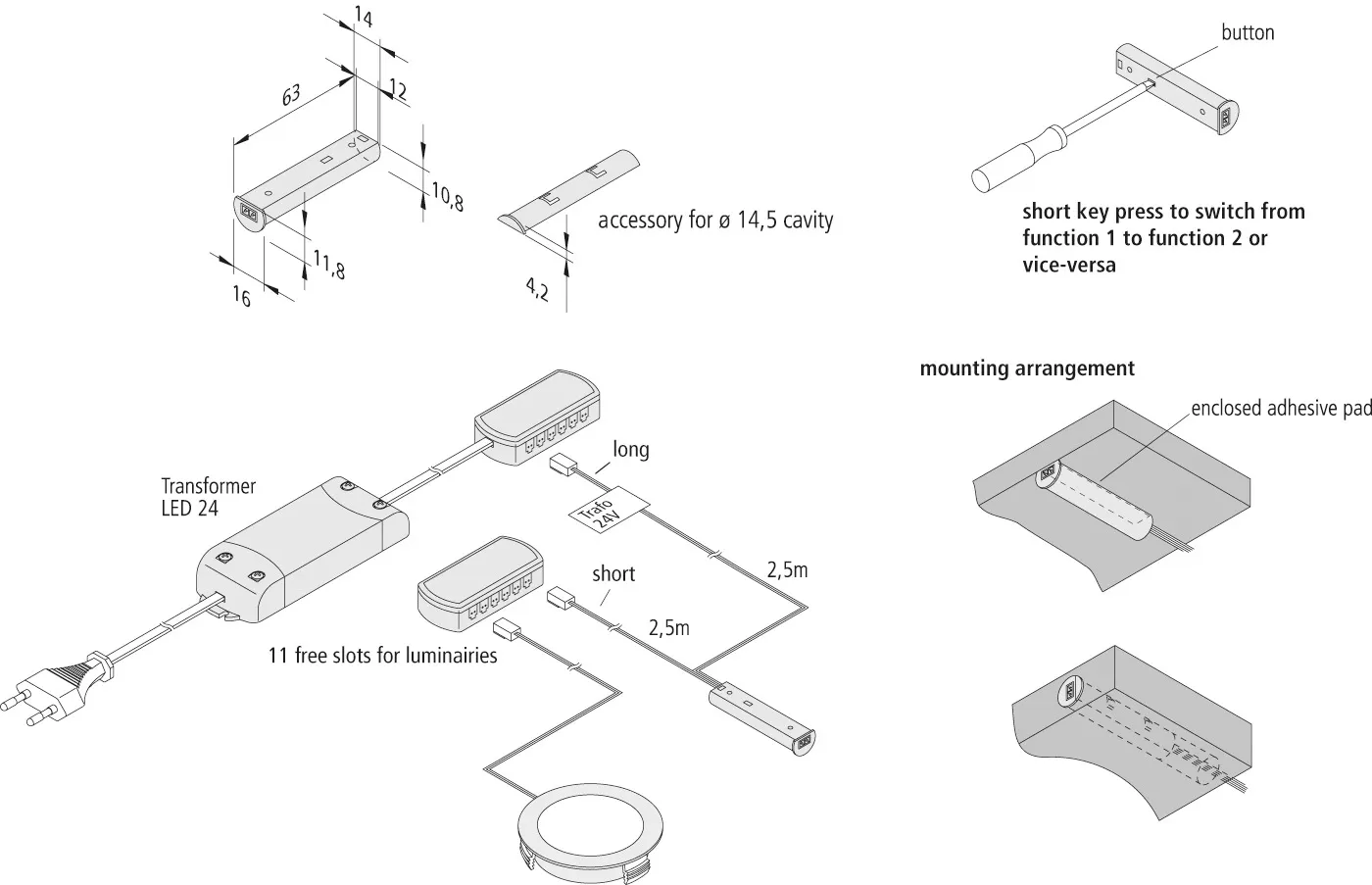

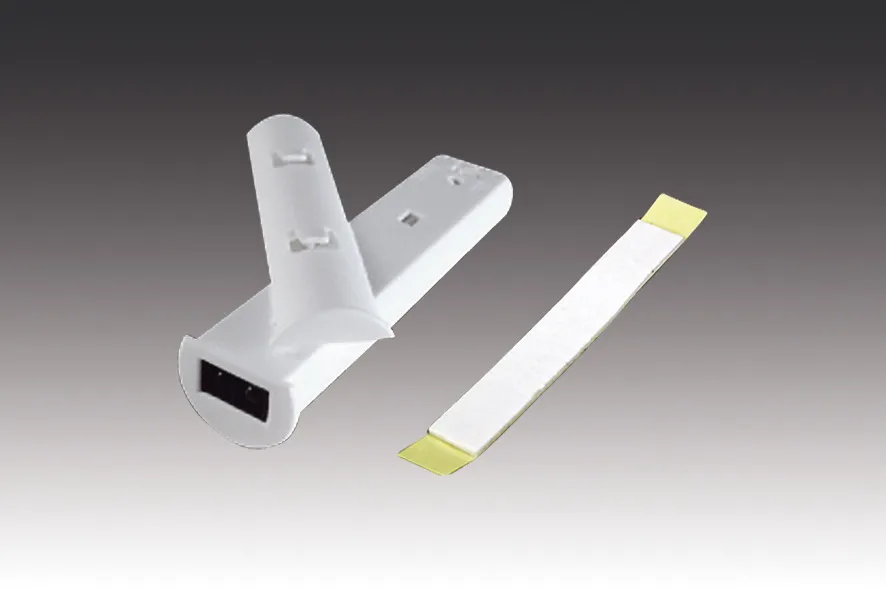

For 14.5mm cavities or to stick on using enclosed adhesive pad
There must be a distance of about 2 up to 50 mm (depending on the reflection surface) between the closed door and the IR-sensor
No memory mode (luminaires are off after disconnection from mains)
Supply cable 2.5m with LED 24 plug
Sensor cable 2.5m with 11-way distributor LED 24
