Austral SD7 Barrier Door Starter Kit

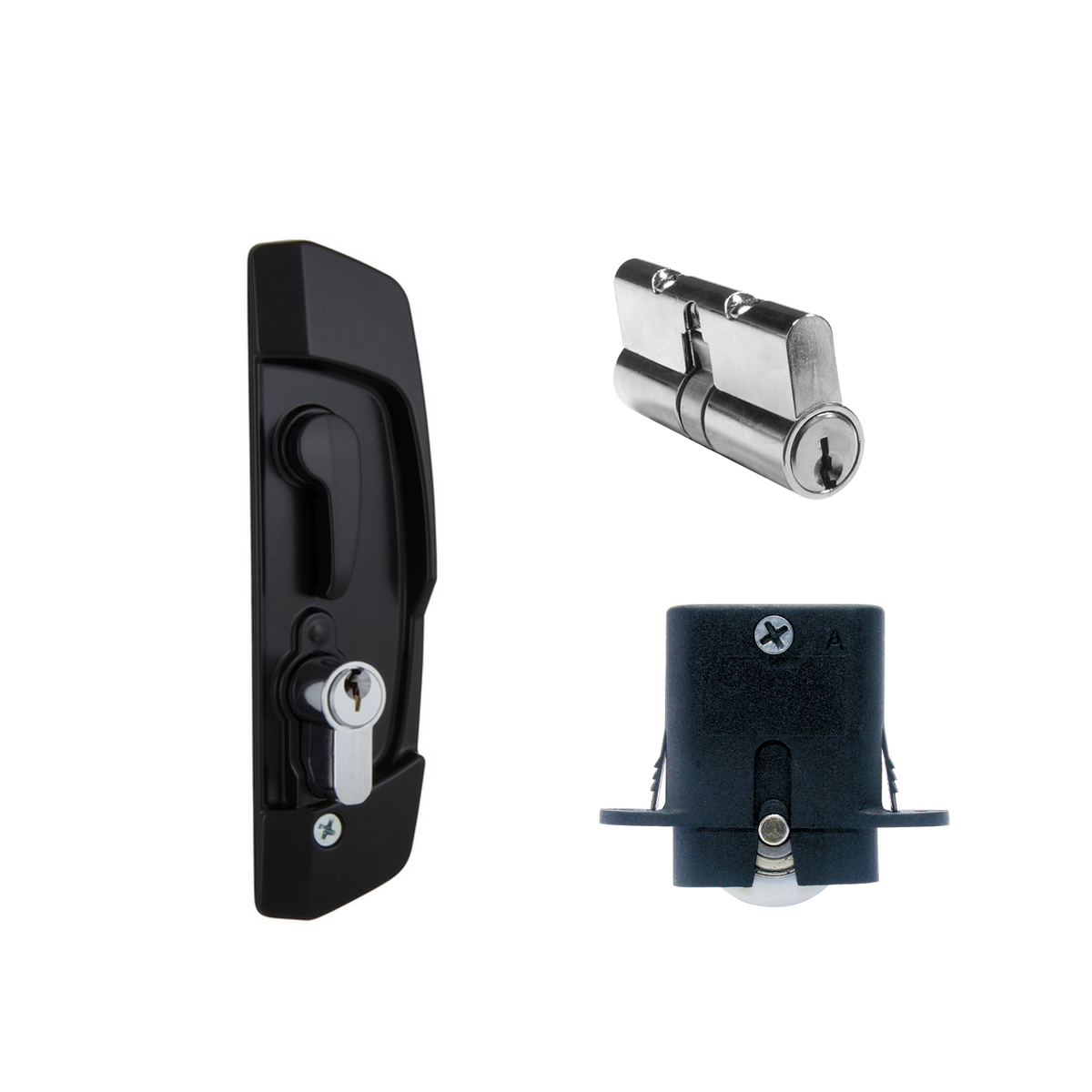

Kit Includes:

Qty x 1 - 7106846 Lock Sd7 Sliding Door Black With Snib

Features and Specifications

• Mortice deadlock for sliding doors which latches on closing, and can be unlatched by levers from either side.
• An interlocking pin resists the door from being lifted and forced opened.
• Interlocking pin resists the door being lifted and forced open
• Upgradeable to a triple lock by adding multi-point (SD14) - purchased seperately
• Internal locking by a snib lever and Internal and external locking by a key
• Ergonomically designed lever action
• Latching engagement on closing
• Reinforced casting to resist jemmying forces
• Fits industry standard cut outs, proven reliability
• Durable powder coated finish
• Manufactured in EZDA 3 zinc alloy

Keying:

• Use with pin or disc cylinder (to be ordered separately)
• 2 x 5 pin cylinder, 2 x 10 disc cylinder, 2 x 6 disc cylinder, 2 x 5 disc cylinder

Qty x 1 - 7106865 Cylinder Double X 5 Pin Aa Chrome Key Alike

Features and Specifications

• Cylinder suits most security screen door locks
• 2 x 5 pin, C4 key profile cylinder lock (two chrome plated brass keys included)
• Brass and zinc die cast construction
• Double cylinder
• Available keyed alike x 2, x 3, x 4, x 5 and x 10

Qty x 4 - 7109550 Pro Series SPEED-FIT™ Roller With Spring

Features and Specifications

• With spring
• Zinc plated axle, unsealed bearing
• Auto clip in feature
• Adjustable underload
• 11mm of adjustment
• Adjustment screw on both sides
• 25KG Load Capacity
