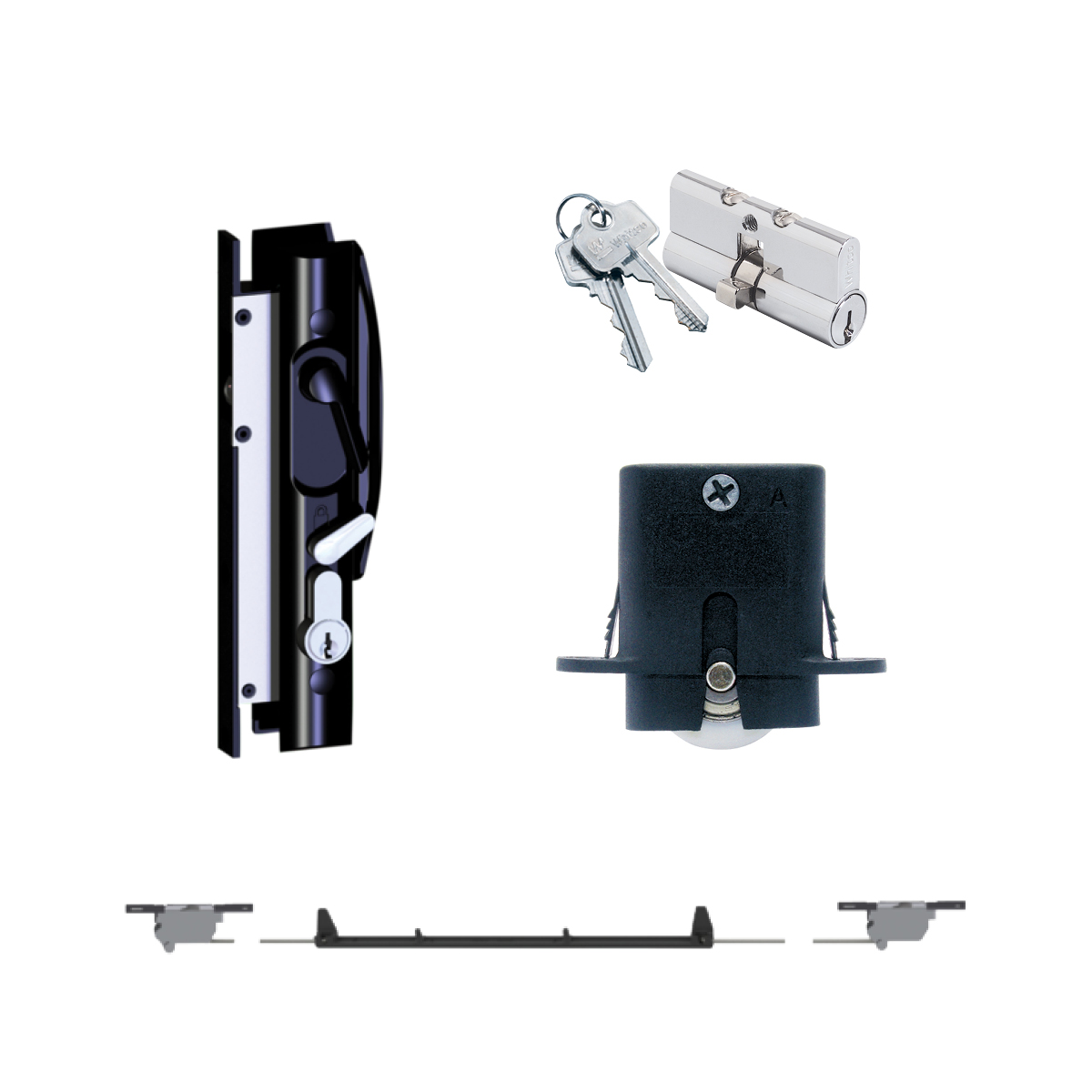

Yale Quattro Sliding Security Door Kit

Kit Includes:

Qty x 1 - 7111309 Quattro Lock Sliding Security Door Black No Cylinder

Features and Specifications

• Concealed fixing screws from the outside of the door for a cleaner appearance and increased security.
• Compatible with industry standard door preparation
• Retrofitable with Lockwood 8653.
• Suit standard door thicknesses, ranging 18.0 – 25.0mm
• Internal padlock symbol denotes door is snib locked
• Contemporary styled furniture with pre-assembled snib
• 3 Point Locking Kit operation is driven by the inside snib for increased security when 'day latched'
• Key overrides snib

Qty x 1 - 7111307 3 Point Lock Accessory Kit Quattro Standard Kit Black Sliding Door

Features and Specifications

• Universal remote locks and rods
• Snib operates all 3 locks
• Easy installation
• Snap-on-fix actuating bar suits above or below centreline applications and wider door sections
• High performance lock meets or exceeds relevant requirements of Australian Standard AS 4145.2-2008 to Level S7 and D8
• Successfully tested on security screen doors in accordance with Australian Standard AS 5039-2008:Security Screen Doors and Security Window Grilles and AS 5041-2003: Methods of test
• Zinc diecast bolt and lock case and Galvabond auxiliary cover plates
• Galvanised steel connecting rods
• Stainless steel strikes

Qty x 1 - 7107041 Whitco Cylinder Double X 5 Pin Bright Chrome Key Alike

Features and Specifications

• 2 x 5 pin, C4 key profile cylinder lock (2 chrome plated brass keys included)
• Available in bright chrome
• Brass and zinc die cast construction
• Keyed alike x 10, x 20 and x 50
• Random keyed x 10 and x 50
• Available to special key numbers please contact your local branch

Qty x 4 - 7109550 Pro Series SPEED-FIT™ Roller With Spring

Features and Specifications

• With spring
• Zinc plated axle, unsealed bearing
• Auto clip in feature
• Adjustable underload
• 11mm of adjustment
• Adjustment screw on both sides
• 25KG Load Capacity
